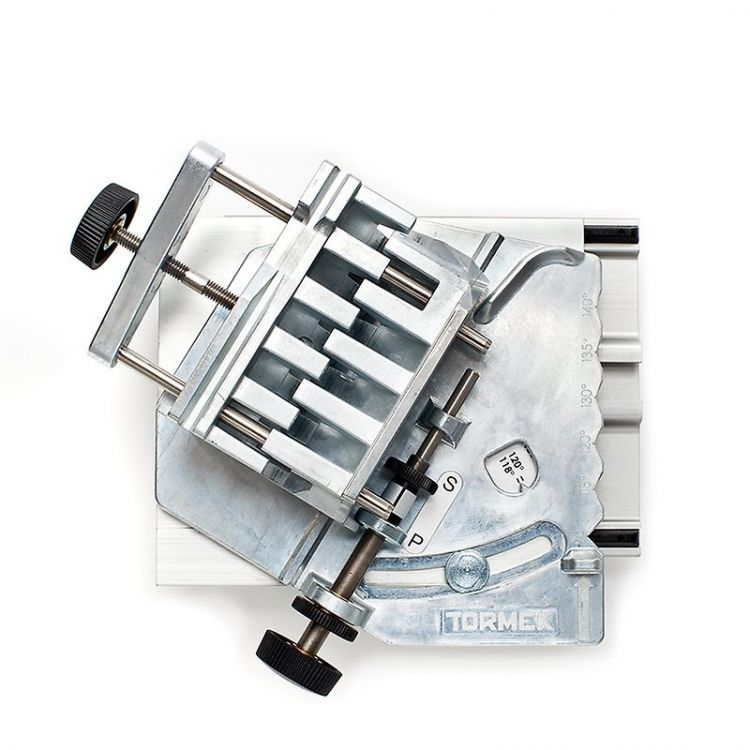

The Tormek DBS-22 Drill Bit Sharpening Attachment allows you to sharpen your drill bits from 3 mm (1/8") to 22 mm (7/8") in diameter with maximum precision and to give a four-facet point for best performance. The optimum tip and lip relief angle can be set for each drilling operation, taking into account the drill bit size and material. You can also sharpen broken bits back to the perfect shape.

The patented DBS-22 Drill Bit Sharpening Attachment is used to create a four-facet point that provides great cutting characteristics as the cross-cut of the drill bit is pointed instead of being almost flat, as on many other drill bits. A four-facet point won't wander and requires significantly less drilling pressure compared to a conventional cone point drill.

A precision-sharpened four-facet point also reduces heat build-up, giving a very long service life for the drill bit. Independent tests show that drill bits sharpened using Tormek equipment last more than four times longer than new conventional drill bits¹.

The risk of overheating and micro cracking or loss of hardening of the steel is eliminated by working with the natural laws and cooling the edge continuously. You have full control at all times and can see how sharpening is progressing. A magnifying glass is included for smaller drill bits to help you line up the bit in the jig and see the results of your sharpening.

¹ Uddeholm Tooling AB, 2010. In the test, 15 mm (0.59") deep holes were drilled in a hardened steel using a 6 mm (0.24") drill bit. At a speed of 1326 rpm and 0.15 mm (0.006") feed per revolution, the drill bits sharpened using the Tormek equipment lasted for 327 holes on average, while the new S-tip drill bits lasted for 72 holes.

Key Features:

• Sharpens a four-facet point that drills more efficiently and lasts longer.
• Sharpens drill bits with outstanding precision.
• Extends drill bit service life more than four times over compared to traditional S-tip drill bits.
• Works best with Tormek T-8, as well as older models.

About Tormek:

Emerging from Sweden's rich tradition of innovation and quality, Tormek has set the benchmark for modern edge tool sharpening. With a commitment to innovation that has led to over 20 patents, Tormek delivers an extensive system of expertly crafted jigs and attachments for optimal tool sharpness. Despite a presence in 35 countries, every Tormek product originates from their dedicated facilities in Lindesberg, Sweden, combining traditional Swedish craftsmanship with advanced technology. Woodsmith's trust in the Tormek system for over 20 years as part of our own professional sharpening service is testament to its exceptional performance and resilience.
